CONCEALED DUCTED AIR CONDITIONING

Heating ✓

Cooling ✓

7 Year Parts Warranty as standard ✓

2.5kW to 25kW Capacity Range (per indoor unit)

The concealed ducted unit provides high performance, high capacity options and discreet installation, perfect for almost every environment:

• Offices Suites

• Retail Stores

• Schools, Colleges and Universities

• Hospital Wards

• & More

Compatible with the following system types:

• Single split systems

• Multi-split Systems

• VRF Systems

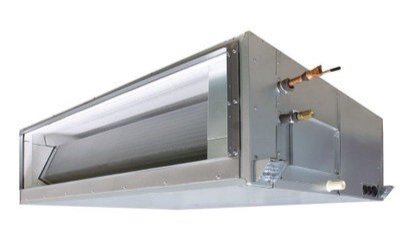

Concealed Ducted Air Conditioning
Button

7 Year Extended Warranty on all
Panasonic and Toshiba Systems

GET THE LATEST IN ENERGY EFFICIENT CONCEALED DUCTED AIR CONDITIONERS

The concealed ducted type indoor unit was originally designed for, and is still widely used in buildings which use a suspended ceiling grid with removable tiles. The entire unit is hidden within the ceiling void and air ducting is then installed to intake and discharge air to/from the space to be conditioned – often via discreet grilles or valves which replace the removable tile

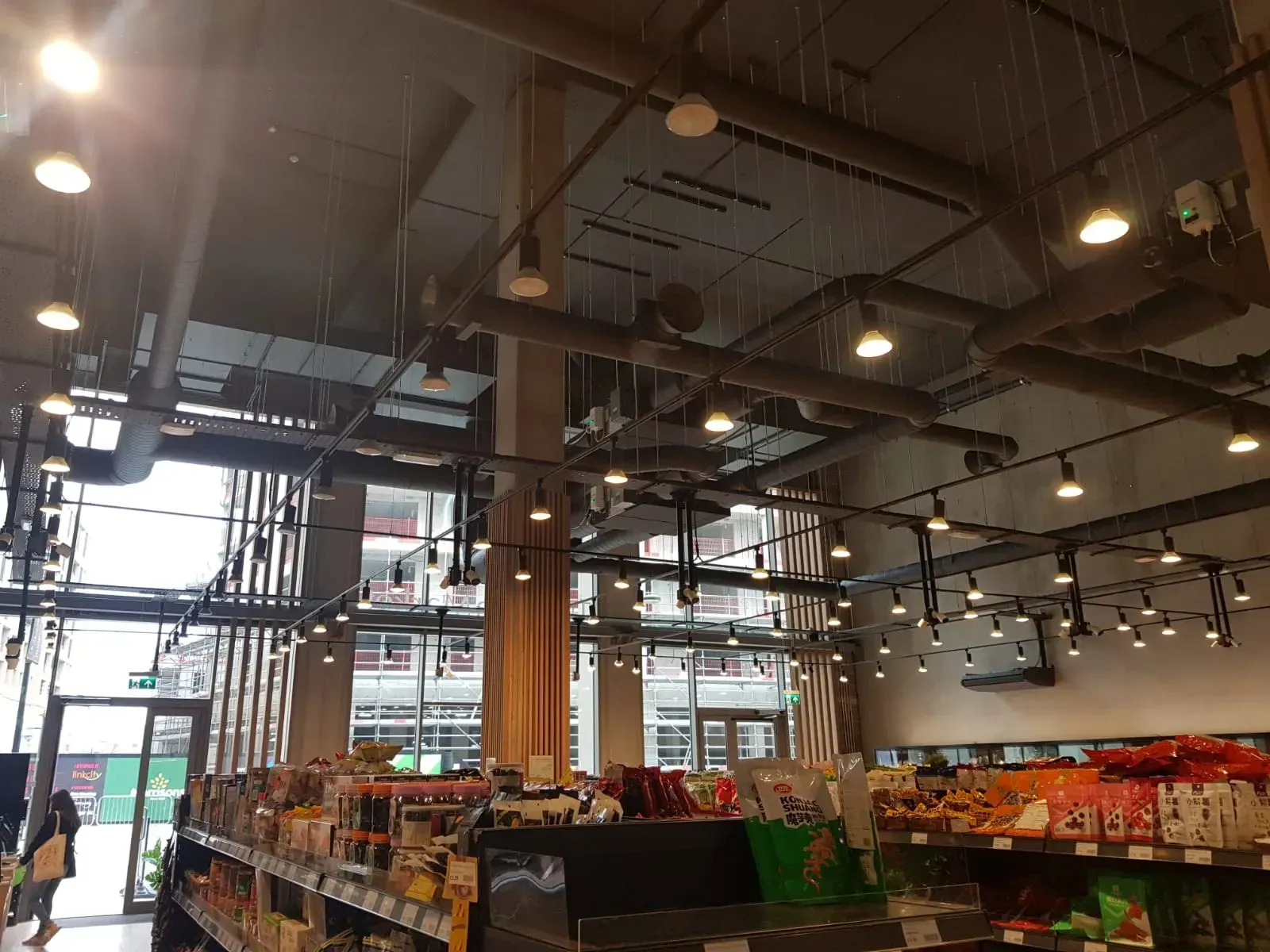

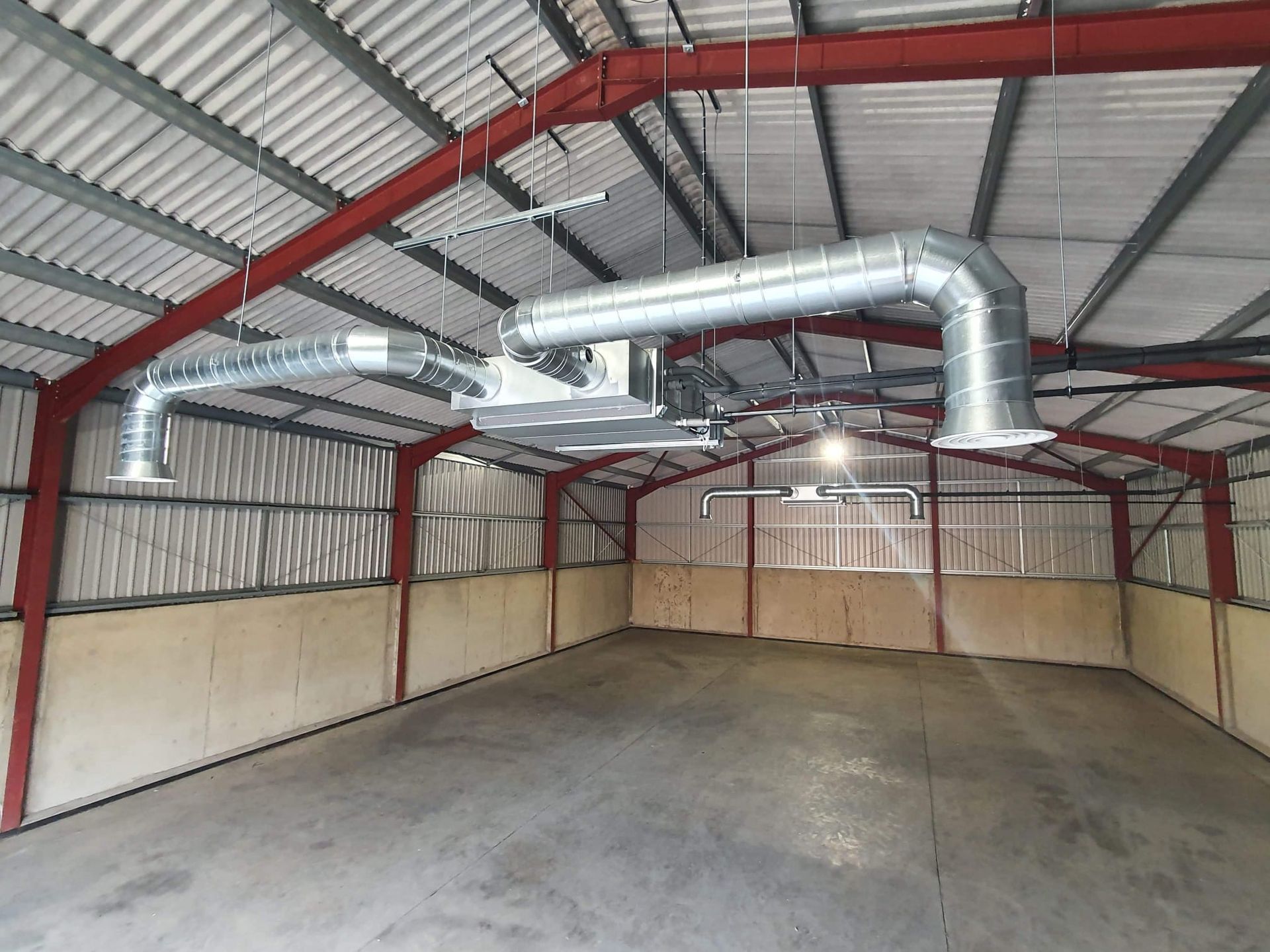

Nowadays it has become increasingly common to concealed ducted units even when there is no ceiling to hide the unit. This industrial look has become desirable in many commercial environments and Newman refrigeration are experts when it comes to making all the industrial services which connect to the unit look pretty!

The ducted unit provides a blank canvass for air ducting design, allowing almost limitless possibilities for delivering and returning air to/from the space to be conditioned.

The concealed ducted unit is often the most cost effective option where large open plan spaces require a high capacity of heating and cooling.
